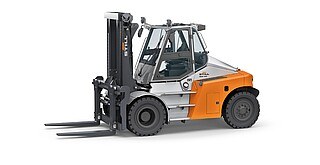

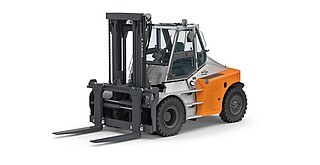

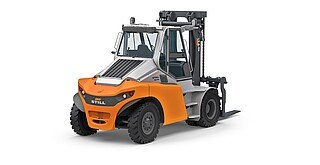

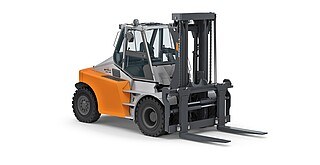

Diesel Forklift Truck RCD 10 – 18 t
Make light work of heavy loads
- Load capacity 18000 kg
- Rated lift 7000 mm
- Speed 30 km/h
Loads weighing up to 18 tonnes? Bulky goods? Tough operating conditions? The STILL RCD 100-180 heavy-duty forklift truck does the job for you! Its efficient and powerful common-rail turbo engines provide enough power to satisfy even the greatest handling appetite quickly and effectively. How much fuel does your new heavyweight champion consume in the process? Less! The results of the tested comparative work cycles show that the RCD 100-180 consumes less than all other torque converters. You don’t have to worry about the EU emission standard either: The STILL RCD 100-180 is well below the currently required limit values.
It boasts impressive handling power and extremely intuitive and sensitive controls: Thanks to the precise hydraulics and excellent visibility, your employees can get the best possible performance out of the truck in any situation. And in the event that the view to the front is blocked by large loads, the entire driver’s workspace, including the control elements, can be rotated by 180 degrees. Regardless of the load you have to move, the wide range of fork carriages and attachments of the RCD 100-180 will take the weight off your shoulders.
Powerful and economical:
exceptional handling performance meets the lowest levels of consumption of all hydrodynamically driven trucks in its class
Stable all-round visibility:
visibility-optimised truck design with sloped counterweight and armoured glass roof window
Ergonomically excellent:
roomy and low-vibration workstation, decoupled, with easy to use control units
RCD 10 – 18 t اطلب
املأ الاستمارة
.سنعود إليك في أقرب وقت ممكن
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
The ergonomically designed workspace and shock-absorbing cab with rubber bearings
protect the driver’s health and maintain performance levels
Easy-to-reach and intuitive control elements
enable consistently efficient and safe operation
Excellent all-round visibility:
A sloping counterweight and visibility-optimised lifting frame ensure a clear view of the goods and the working environment
Individual adjustment options of the control elements for the driver,
ensuring optimum comfort and fatigue-free working
Simply powerful
Industrial engines combine strong performance with low consumption,
improving the truck’s lifespan and handling performance while reducing fuel consumption and CO2 emissions
Best possible performance dynamics
thanks to the optimal combination of efficient diesel engines, transmission and hydrodynamic drive
State-of-the-art exhaust gas treatment system
that significantly exceeds current emission standards
Simply safe
Automatic parking brake
allows the vehicle to be parked safely
Clear view when reversing
– all rear-facing parts such as the exhaust pipe are integrated into the chassis
Large, non-slip and clearly visible steps
allow for safe entry and exit
Roof window made of safe armoured glass
offers good visibility of the raised load and protects against accidents and damage to goods
Safe and fast goods handling
due to precise and intuitively controllable hydraulic lifting system
Simply flexible
Different operating concepts
offer the right solution for all drivers and operating situations
Control options for any situation
including an additional electric steering wheel in the left armrest
Large selection of specially developed attachments
makes the truck the perfect all-rounder for various applications
Heavy loads can be transported with ease in confined areas
thanks to narrow track width (RCD 100 and 120)
Simply connected
Analysis and optimisation of operational and truck data
through the optional interface for integration into fleet management software such as STILL neXXt fleet
RCD 10 – 18 t اطلب
املأ الاستمارة
.سنعود إليك في أقرب وقت ممكن
| Model | Maximum capacity (kg) | Maximum lift height (mm) | Travel speed (km/h) |
|---|---|---|---|
| RCD 100/600 | 10.000 | 6.500 | 27.9 |
| RCD 100/1200 | 10.000 | 7.000 | 28.8 |
| RCD 120/600 | 12.000 | 6.500 | 27.6 |
| RCD 120/1200 | 12.000 | 7.000 | 28.4 |
| RCD 140/600 | 14.000 | 7.000 | 28.3 |
| RCD 140/1200 | 14.000 | 7.000 | 28.1 |
| RCD 150/600 | 15.000 | 7.000 | 28.3 |
| RCD 150/1200 | 15.000 | 7.000 | 27.9 |
| RCD 160/600 | 16.000 | 7.000 | 28.1 |
| RCD 160/1200 | 16.000 | 7.000 | 27.7 |
| RCD 180/600 | 18.000 | 7.000 | 28.1 |
| RCD 180/900 | 18.000 | 7.000 | 25 |
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
